MSK 150: Professional Multi-Standard Signal Meter for Satellite, Terrestrial, Cable, IPTV and Optical Networks
Modern television and telecommunications installations require reliable measuring equipment capable of supporting multiple signal transmission technologies. The MSK 150 from KATHREIN Digital Systems is a professional multi-standard signal meter designed to provide measurement and testing capabilities for satellite, terrestrial, cable, IPTV, Wi-Fi and optical networks in a single device.

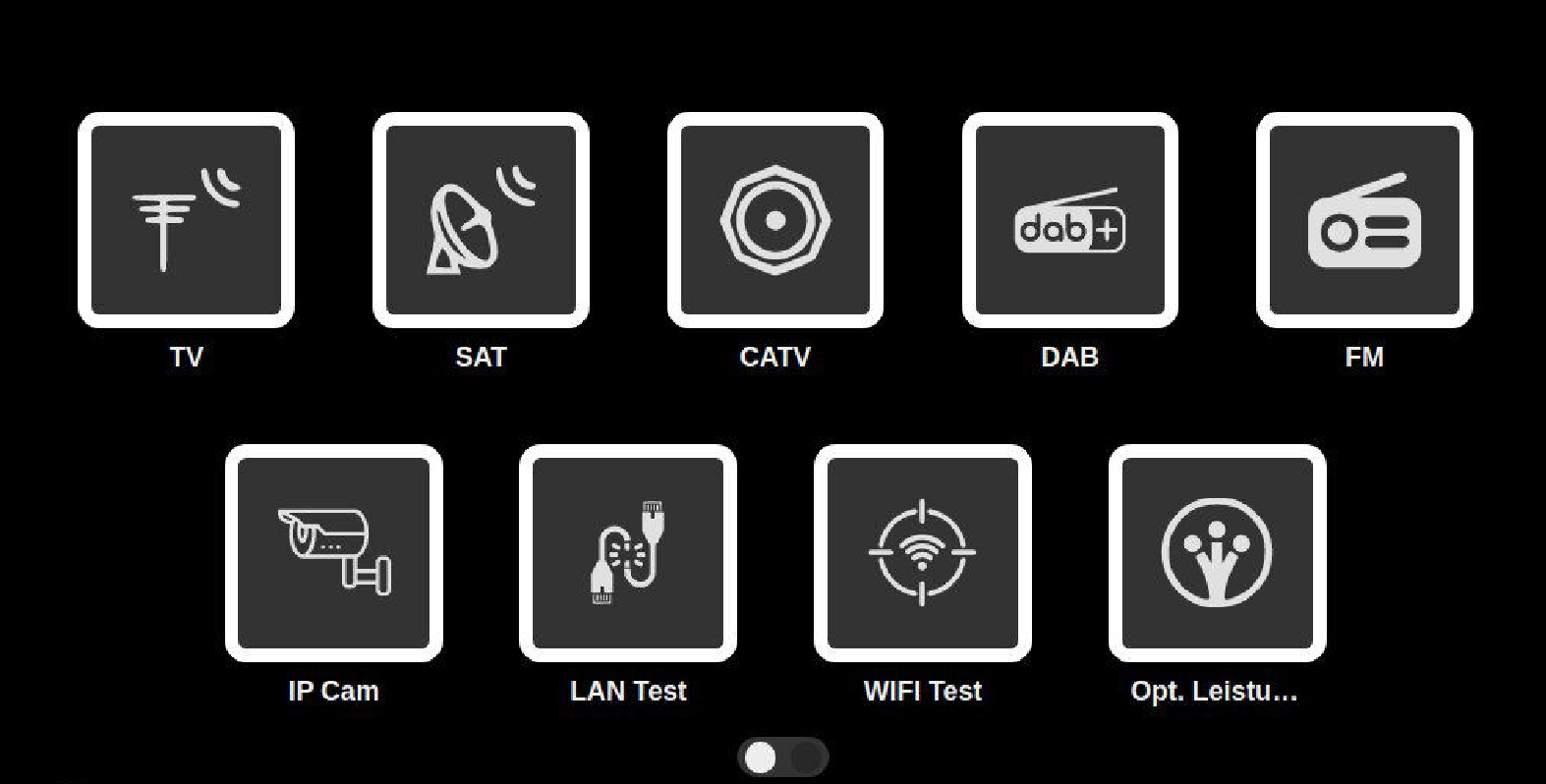

Multi-Technology Support
The MSK 150 supports reception and measurement for:
- DVB-S / DVB-S2
- DVB-T / DVB-T2
- DVB-C / DVB-C2
- IPTV
- Wi-Fi
- Optical Networks
Supporting multiple transmission technologies enables professional installers to perform measurements and diagnostics across different parts of an installation using only one instrument.
7-inch Color Touchscreen
The MSK 150 features a 7-inch (17.8 cm) 16:9 color touchscreen, providing convenient access to measurement functions and results. Its intuitive navigation system allows users to operate the instrument quickly and efficiently.

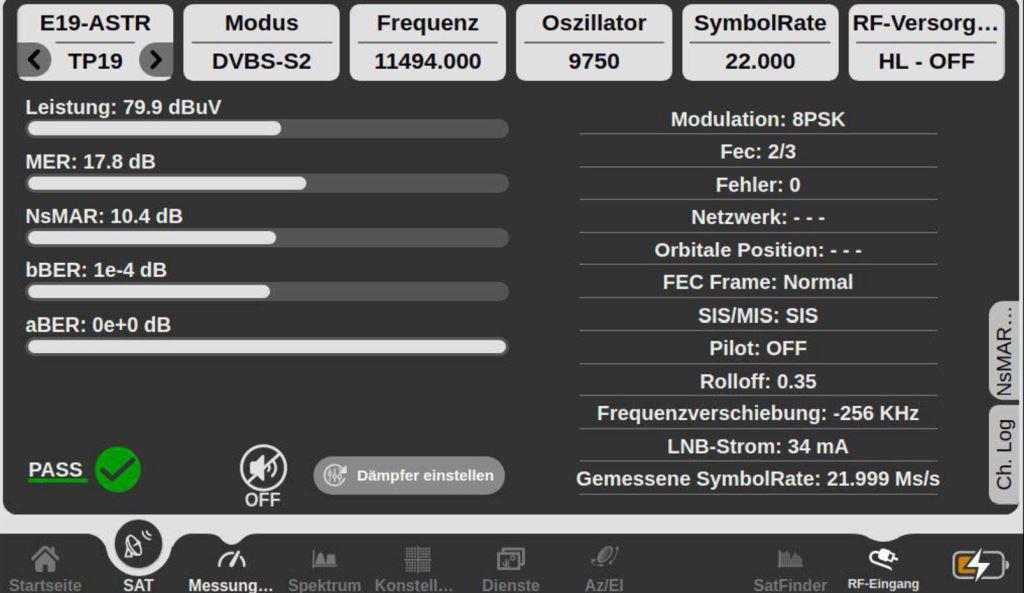

DVB-S and DVB-S2 Measurements
For satellite installations, the MSK 150 performs measurements across a frequency range of 30 to 2700 MHz and supports symbol rates from 1 to 45 Msym/s. It also provides MER measurements and supports DiSEqC 1.0, DiSEqC 1.1, SCD and SCD2 protocols.
Additionally, the instrument displays information including:
- Network ID (Net-ID)
- NIT
- TSID
- LCN
- Satellite Position
DVB-T, DVB-T2, DVB-C and DVB-C2 Measurements
For terrestrial and cable networks, the MSK 150 covers a frequency range of 30 to 1000 MHz and supports channel bandwidths of 6, 7 and 8 MHz. It supports QPSK, 16QAM, 64QAM and 256QAM modulation schemes while providing MER measurements from 5 to 40 dB.
Real-Time Spectrum Analysis
The MSK 150 includes Real-Time Spectrum Analysis, allowing users to visualize and monitor signal conditions during measurements.
IPTV and Network Functions
The instrument includes several network-related features, including:
- IPTV support
- Web Interface
- LAN Cable Tester
- Two RJ45 ports (LAN and Test LAN)
These functions allow the instrument to be used in installations where network infrastructure testing is required alongside television signal distribution.

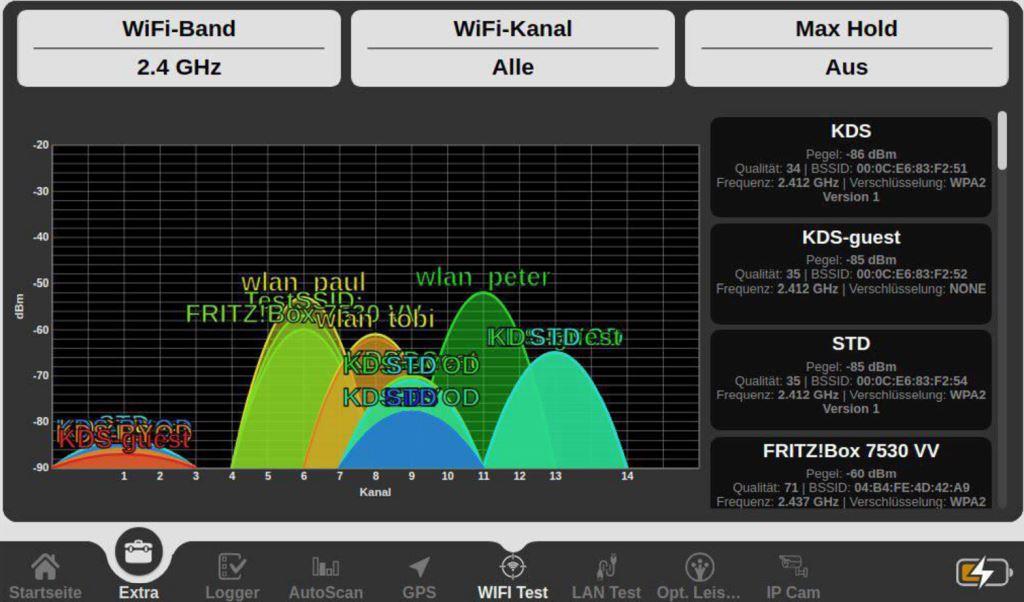

Wi-Fi Analysis
The MSK 150 includes an integrated Wi-Fi Analysis function as part of its standard feature set.
IP Camera Testing
Among its additional diagnostic tools, the MSK 150 includes an IP Camera Tester, facilitating the testing of IP-based surveillance devices.
Optical Network Measurements
The MSK 150 features an SC/APC optical input and supports optical measurements at the following wavelengths:
- 1310 nm
- 1490 nm
- 1550 nm
Optical measurement specifications include:
- Measurement range: -25 dBm to +5 dBm
- Measurement accuracy: ±0.5 dB
- Automatic loss calculation
- Maximum input power: 5 dBm
Additional Features
The MSK 150 also includes:
- TS Recorder
- Integrated speaker
- Storage for measurement data and channel lists
- Multi-language on-screen display
- USB interface for firmware updates and data export
Design and Portability

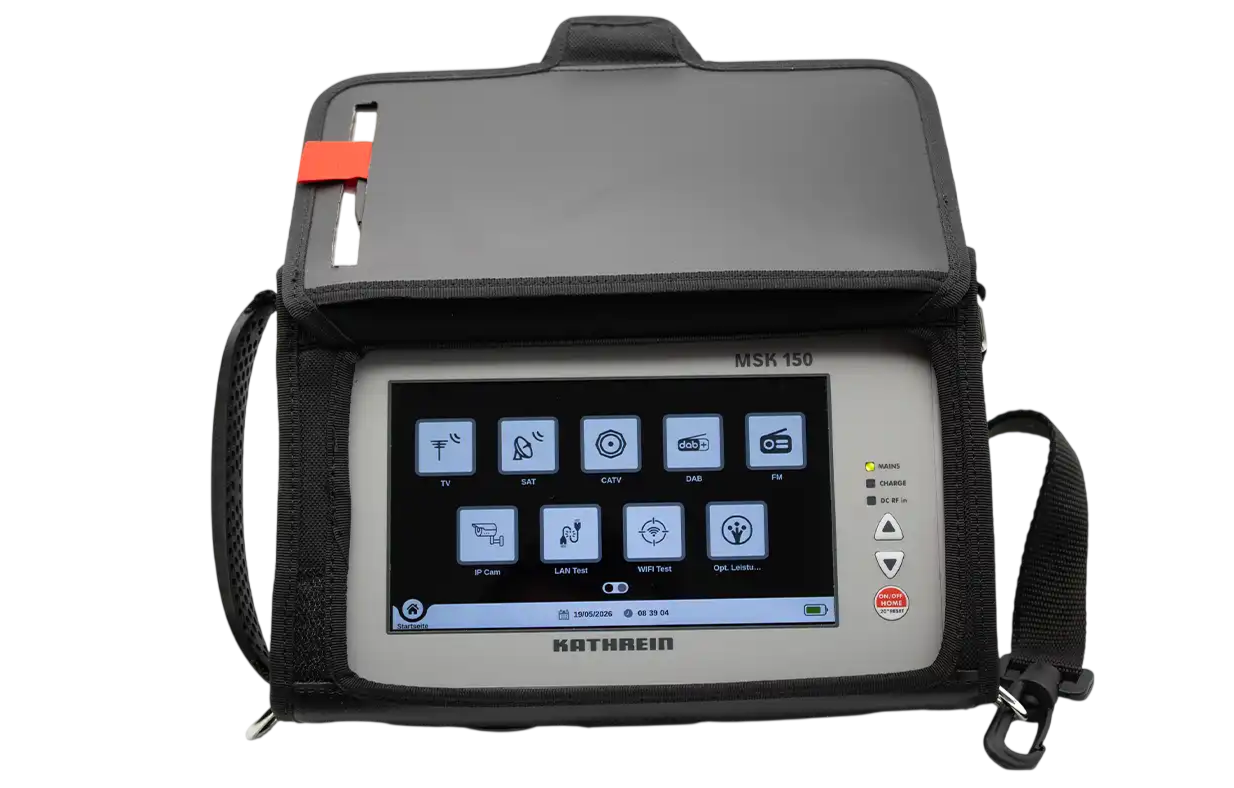

The instrument features a rugged aluminum housing and is powered by a 7.4 V / 4300 mAh Li-Ion rechargeable battery. It measures 38 × 13.5 × 30 cm and weighs 2.6 kg, making it suitable for daily professional field use.
Package Contents
The standard package includes:
- MSK 150
- Carrying bag with shoulder strap
- 230 V power supply (12 V / 2 A)
- ETM 2000 measurement cable
- EMU 05 F test connector
- LAN test adapter
- USB flash drive containing the user manual
Conclusion
The KATHREIN MSK 150 is a professional multi-standard signal meter supporting satellite, terrestrial, cable, IPTV, Wi-Fi and optical network measurements. With features such as Real-Time Spectrum Analysis, TS Recorder, LAN Cable Tester, IP Camera Tester and Optical Measurement capabilities, it provides professional installers with a comprehensive solution for a wide range of television and telecommunications applications.
